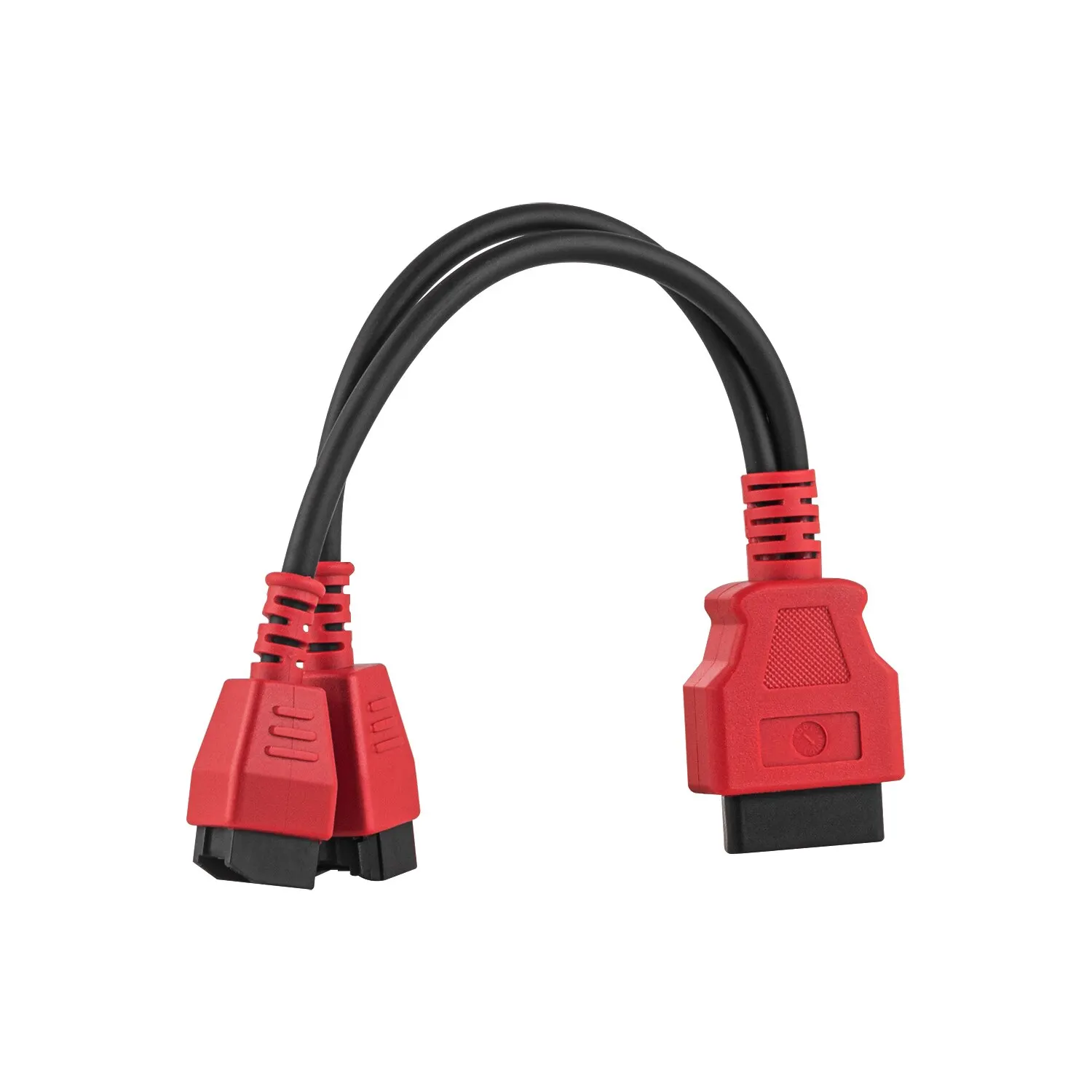

For Chrysler Programming Cable 12+8 Connector For Autel Maxisys LAUNCH X431 Series
The Chrysler 12+8 Adapter is Autel’s by pass for Chrysler’s Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.
2018 and newer For Chrysler, For Dodge, For Ram, For Jeep, and For Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new For Chrysler 12+8 Diagnostic Cable allows communication with latest model For Chrysler, For Dodge, For Jeep, For Fiat & For Alfa vehicles.
1. The Cable Adapter can be used with Autel Maxisys Series Scanners
Such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite etc.
2. The Cable Adapter can be used with LAUNCH X431 Series Scanners,
Such as X431 V, X431 V+, X431 PROS, X431 PRO3S+, X431 PRO3S+ HDIII Model, X431 PAD V etc .
What is it used for?
1. Use with Autel MaxiSys scanner to diagnose on For Chrysler For Jeep For Renegade For Wrangler 300C after 2018 year
2. Most 2018 and newer FCA vehicles include a Security Gateway Module.
Expect to see this message when scanning a For Chrysler with the Security Gateway Module:
DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT
Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.
OBDII Cable Adapter for Autel maxisys For Chrysler/ For Dodge/ For Jeep/ For Fiat/ For Alfa 12+8
Access for Chrysler and for Fiat Vehicles Using Secure Gateway Module
Enables Read and Clear Codes
Perform Active Tests
Required to Access 80% of 2018 for Chrysler and for Fiat vehicles
Required to Access 100% of 2019 for Chrysler and for Fiat Vehicles
For Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:
2013+ For RAM Promaster
2015+ For Fiat 500x
2015+ For RAM Promaster City
2016+ For Jeep Renegade
2017+ For Alfa Romeo Giulia
2017+ For Jeep Compass
2017+ For Jeep Cherokee
2018+ For Jeep Wrangler
2018+ For Ram Trucks
2018+ For Dodge Durango
2018+ For Jeep Wrangler (JL Body only, not JK)
2018+ For Dodge Journey
2018+ For Jeep Grand Cherokee
2018+ For Chrysler Pacifica
2018+ For Chrysler 300
2018+ For Dodge Charger
2018+ For Dodge Challenger
2019+ Most For Fiat/ For Chrysler/ For Jeep/ For Ram vehicles
2020+ ALL FCA vehicles
1pc x For Chrysler 12+8 Cable Adaptor for Autel MaxiSys
Red Color :
